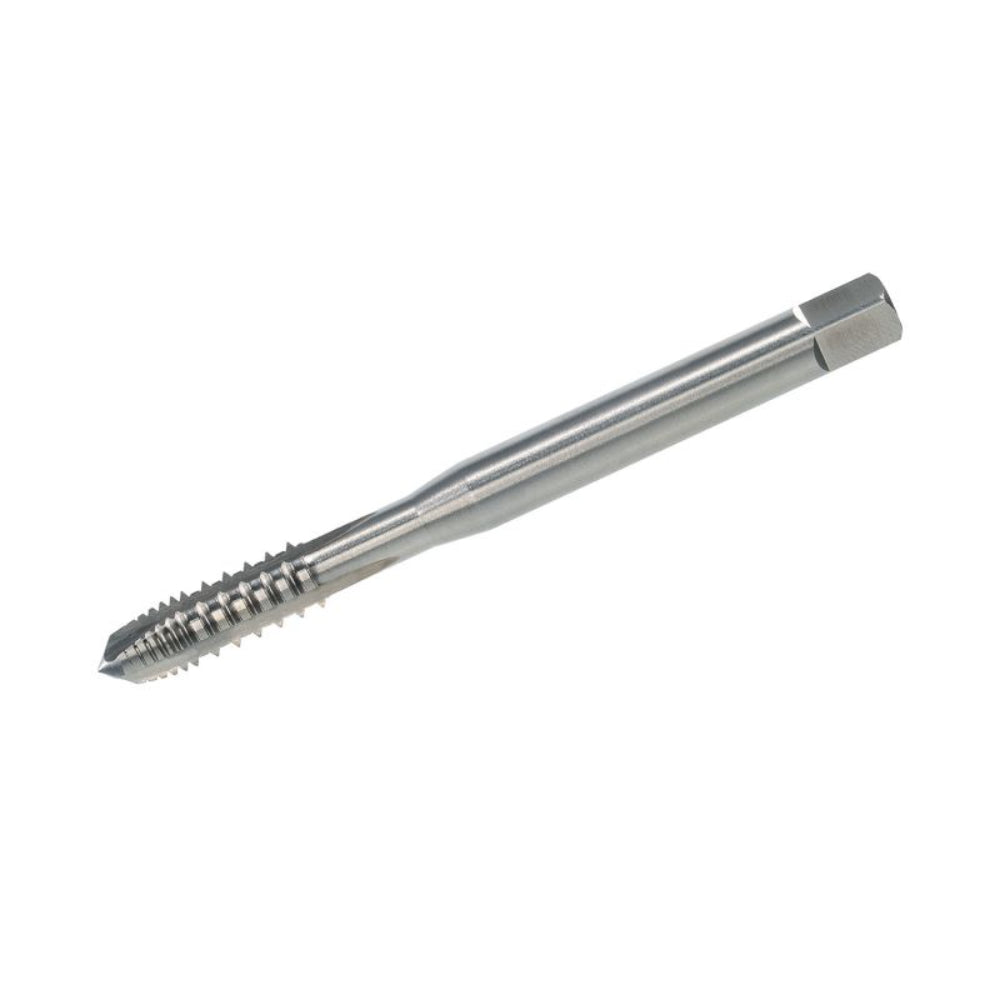

Machine Tap with interrupted threads DIN 371 Form B HSSE - M 6 x 1.0

Application:

for general use

• non abrasive material up to 900 N/mm²
• unalloyed and low alloyed steel
• for through holes

  Type of thread	metric ISO-thread
  Standard	DIN 371
  Form	Form B
  Material	HSSE
  Tolerance	ISO2 (6H)
  Size	M 6 x 1.0
  Overall length (L1)	80 mm
  Thread length (L2)	19 mm
  Core hole diameter (D1)	5.0 mm
  Shank diameter (D2)	6.0 mm
  Drive connector	4.9 mm
  EAN	4022835379386
  Item number	37938
  Type of flute	straight fluted
  Application	for through holes
  Thread standard	DIN 13
