Crown Magnetic Drill 1800W CT32030 BMC

• Allows selection of optimum speed for specific materials.
• Allows changing the direction of rotation.
  Package Included

  Strength	600W
  Chuck Type	Automatic Supra Chuck
  No Load Speed	0-2800 RPM
  Drilling Capacity(Concrete)	13mm
  Drilling Capacity(Metal)	13mm
  Drilling Capacity(Wood)	20mm
  Weight	1.70 kg
  Number of Boxes	5 Names
  Chuck	13mm

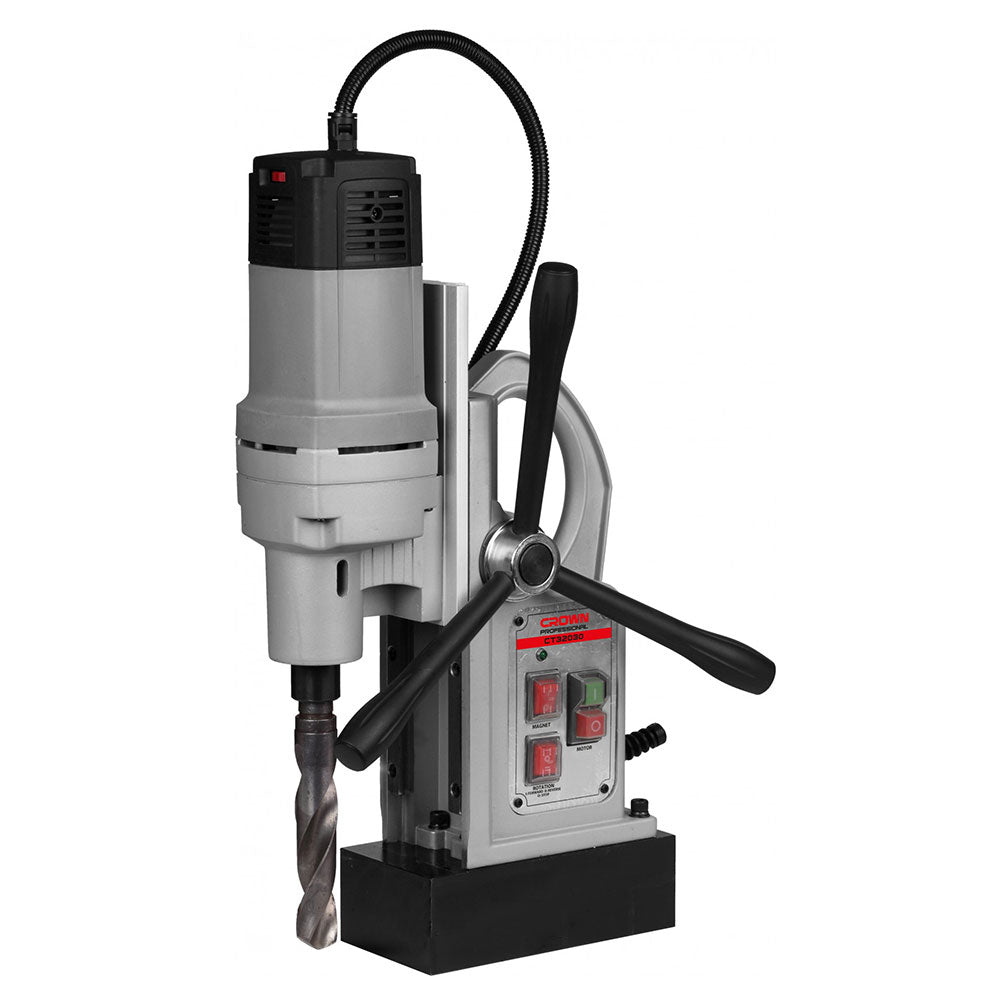

  Crown CT32030 BMC Magnetic Drilling Machine is designed for professional use. Such an installation is used for drilling metal beams and ceilings. It is worth emphasizing the versatility of the machine. It has a magnetic base that allows you to mount it on metal structures. The presented model shows itself perfectly in practice due to its high performance.

  Key Features:

  Rated power 1800 W
  The Crown CT32030 BMC magnetic drilling machine is equipped with a powerful motor. It provides such equipment with high performance and load resistance. It has overload and overheat protection for reliable operation.

  Speed control
  The model provides smooth adjustment of engine speed. It provides precise work. You can set the optimal speed for drilling a certain type of metal. Also set up the machine to use a specific drill diameter. Thus optimizing the load on it, as well as on the machine itself.

  High drilling efficiency
  Due to the fact that the Crown drilling machine with a magnetic base is equipped with a powerful motor and gearbox, it perfectly copes with any task. The model easily drills holes up to 32 mm with a twist drill. The maximum stroke of 190 mm provides a large drilling depth.

  Magnetic base
  Please note that the machine is equipped with a powerful magnetic base. It will allow you to place the device on a metal beam or other structure. The high strength of the magnet ensures the highest possible reliability of fixation.

  High precision aluminum guide
  Thanks to the reliable operation of the guide, you will be able to perform precise drilling. The absence of backlash ensures the absence of vibration and smooth running. The maximum stroke of 180 mm allows for greater drilling depth.

  Rotor with dust shroud
  Dust protection ensures reliable operation of the mechanism, as well as the absence of excessive wear.

  Features:

  • Allows selection of optimum speed for specific materials.
  • Allows changing the direction of rotation.
  • Productive and reliable machine for professional use.
  • The model uses a magnetic base for mounting on metal beams.
  • High drilling efficiency due to precise speed control.
  • The strengthened reducer with protection against dust.
  • High precision guide system.
  • Convenient management.

  Specifications:

  • Brand: Crown
  • Model: CT32030 BMC
  • Type: Magnetic Drill
  • Voltage: 220 V
  • Power (W): 1800
  • Drill chuck type key Spindle speed: 600 rpm
  • Max diameter of the resulting hole: 32 mm
  • Max drilling depth: 190 mm
  • Speed: 600 rpm
  • Downforce: 18000 N
  • Spindle cone: MK3/MT3
  • Coolant supply system: No
  • Max diameter of core drill: 60 mm
  • Processing material: metal
  • Max twist drill diameter: 32 mm
  • Illumination of the working area: No
  • Type of equipment: twist/core drill
  • Net weight: 23.6 kg
  • Length: 58.5 cm
  • Width: 18.5 cm
  • Height: 41.5 cm



لمواصفات الفنية
الطاقة المقدرة : 1800 واط
التيار الكهربائي عند الجهد : 220-230 فولت 7.5 أمبير
سرعة عدم التحميل : 200-600 دقيقة
مقاس المخرطة : 32 مم
ريشة مثقاب : 32 مم
السكتة الدماغية : 190 مم
مثقاب مجوف : 60 مم
قوة احتجاز المغناطيس : 18000 نيوتن
حامل أداة : MT3
الوزن : 23.6 كجم
