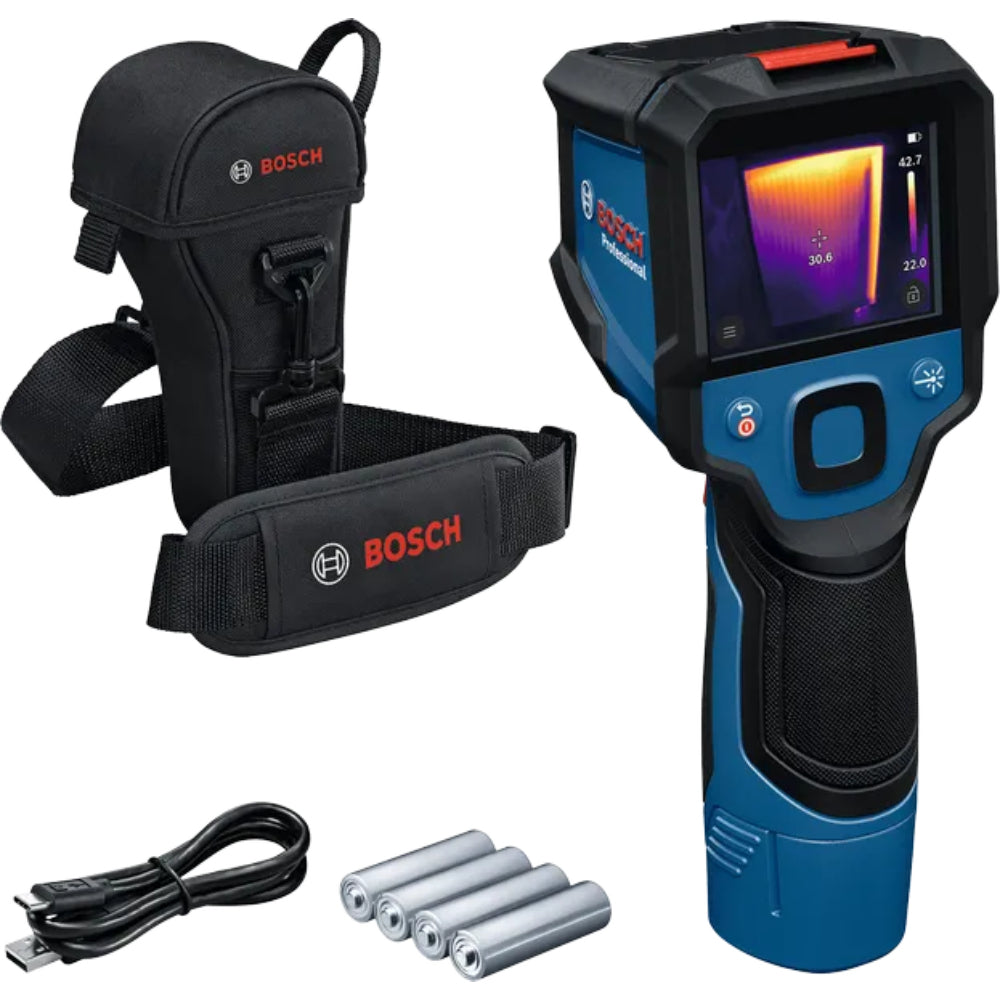

GTC 12V-450-13 كاميرا حرارية – حل احترافي لكشف الاعطال قبل ما تحصل بتوضح اماكن السخونه والمشاكل المخفية بدقه عاليه مثالي للكهرباء - الصيانه - المصانع
Measurement range
-20 °C to +450 °C
Measuring accuracy of IR
± 2 °C (center point)
Measuring application
Thermal image
Thermal sensitivity (NETD)
<=50 mK
Size of IR sensor
256 Pixel x 192 Pixel
Laser diode
Laser class 2, 645-660 nm
Number of measuring points
49,152
Field of view (FOV)
56° x 42°
Power supply and runtime
4 x 1.5 V LR6 (AA) 4 hours, 1 x GBA 12V 8 hours
Frame buffer (number of images)
500
Memory type
Internal memory
File format of image
.jpg
Dust and splash protection
IP54 (except for the battery or battery adapter)
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 50 °C
Focus distance, minimum
0.5 m
Thermal image refresh rate
9 Hz
