with built-in or external probe, including workshop test certificate

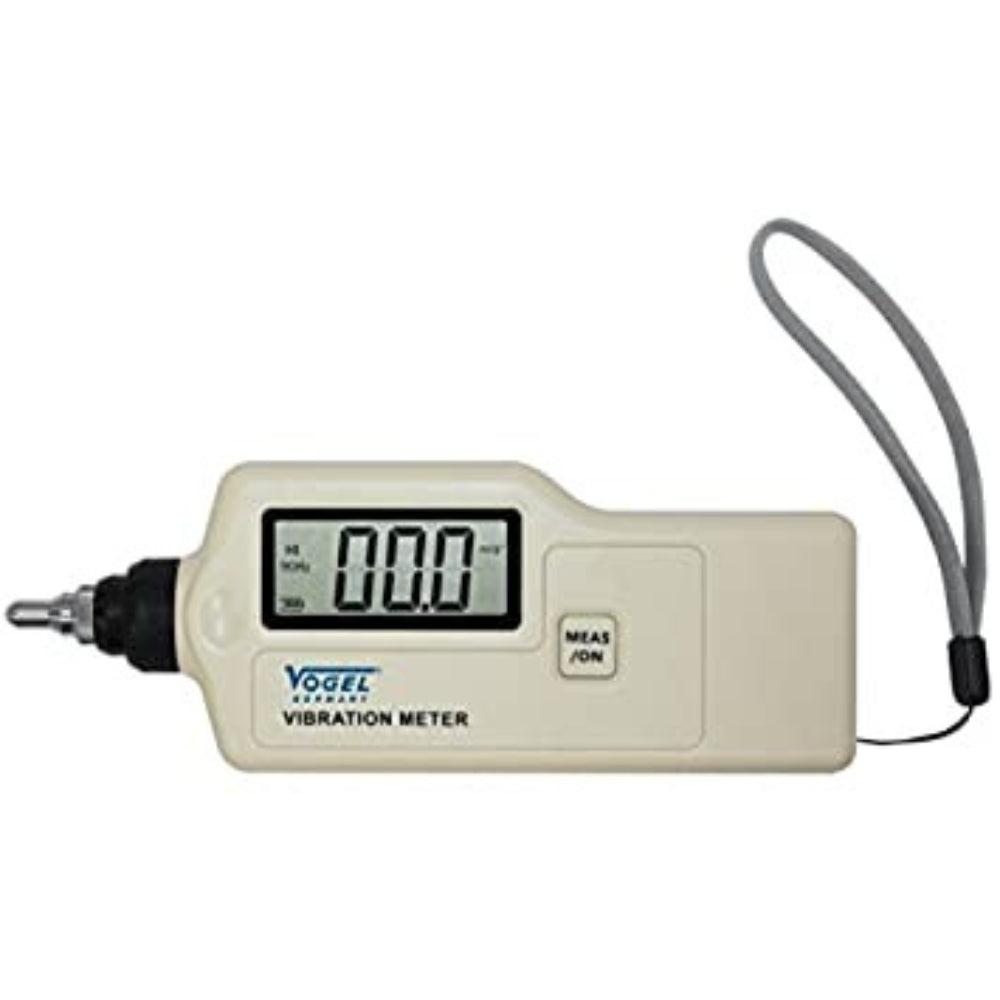

Compact analyzer for preventive maintenance of production machines and vibration equipment and for quick checking of unbalance, condition of bearings and gears.
robust, polyamide plastic housing, with keyboard
Large LCD display with clear reading and backlight
On/Off switch, automatic switch-off after approx. 1 minute, with battery indicator
low-frequency "Lo-RMS" mode for testing low vibrations
"Hi-AVE" high-frequency mode for testing average acceleration
"Hi-Peak" displacement in peak-to-peak mode
high frequency range: 10 Hz to 1 kHz (Lo), 1 kHz to 15 kHz (Hi)
With 2 interchangeable probe tips for different measuring functions: - short probe tip for standard vibration measurements - long, small probe tip for vibration measurements of small or narrow objects, etc. - without probe tip for vibration measurements on smooth object surfaces, etc.
operating temperature 0 °C ~ +40 °C, humidity 30 - 90 %RH
Includes 1 x 9 V battery (type 6LR61), operating instructions.
Type: 480600
LCD display with 18 mm high digits
accuracy ±5% of the displayed value (±2 digits)
with built-in accelerometer and wrist strap
Measuring range Lo-RMS: 0.1 – 199.9 mm/s
Measuring range Hi-AVE: 0.1 – 199.9 m/s²
Displacement, peak to peak Hi-PEAK: 0.001 – 1.999 mm
