With data output.

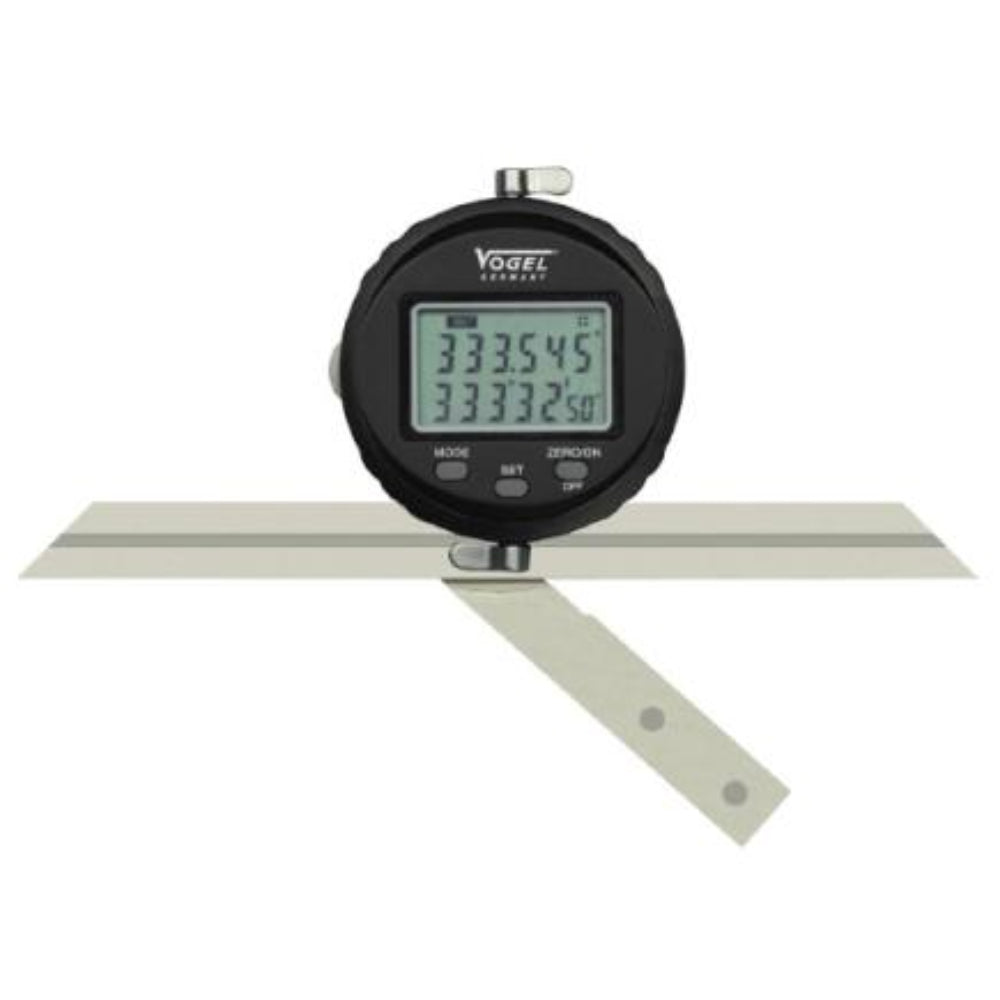

With 3 blades (150/200/300 mm), 90° square and angle stop.
Stainless steel, hardened and fine ground.
Rugged ABS-plastic housing, multifunctional display.
With fine adjustment for easy adjustment and fixing device for the blade.
Large LCD display with clear reading.
Two display lines, resolution in 1. line with 0.005° and in 2. line with min. 10".
Preset to 360°/180°/90°, two measuring directions selectable.
On/Off button, mode-button, set-button, zero setting at any position.
Automatic switch off after approx. 5 min.
Operation temperature 0 °C ~ +40 °C, storage temperature -10 °C ~ +60 °C.
Incl. 1x 3 V battery (type CR2032, art. no.: 90112), with operation manual.



• Lines length: 150 / 200 / 300 mm
• Measuring range: 360 / 2x 180 / 4x 90 °
• Reading / Resolution: 0.005° / 10.00’’
• Total maximum accuracy (±): 5’
