Application:

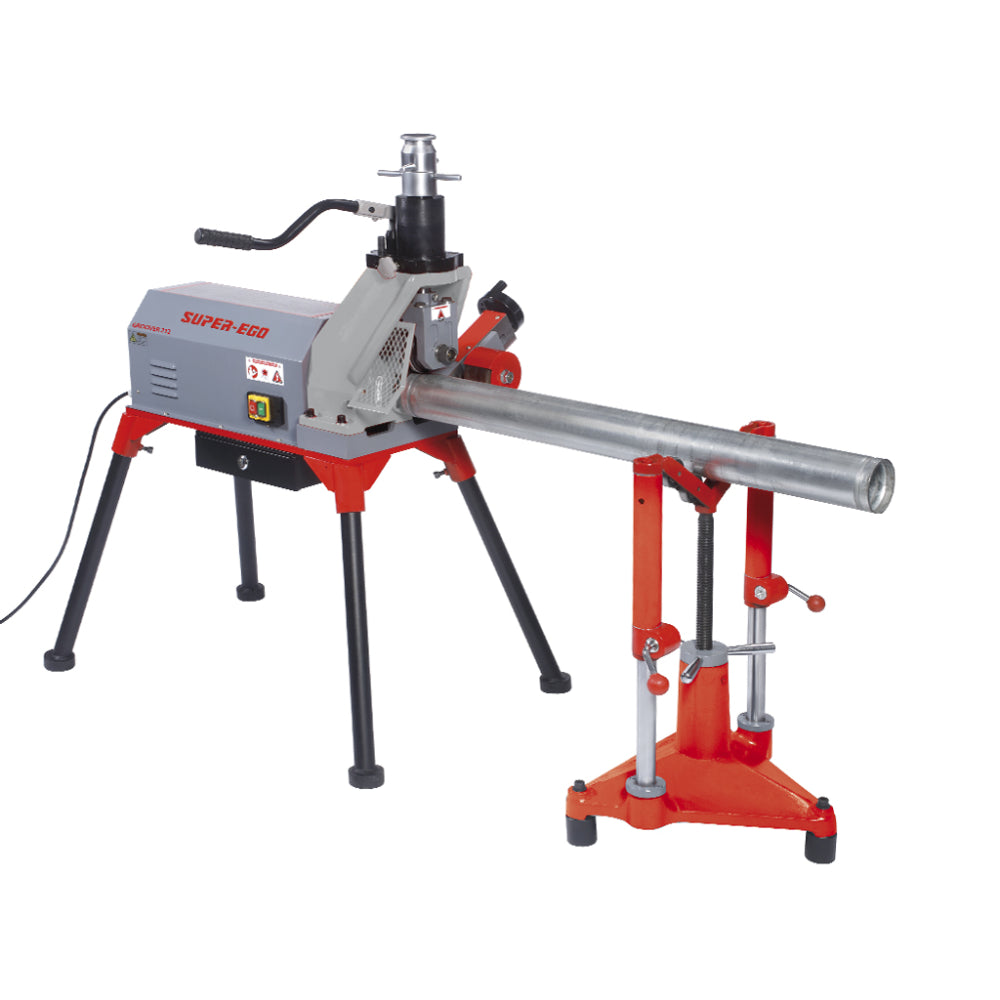

Electro-hydraulic machine for rolling grooves on steel pipes 2-12 inches (30 – 325 mm).

Peculiarities:

• Robust hydraulic pump with feed handle for easy operation.
• Compact and stable machine design. Powerful, low-noise engine.
• Fine adjustment of groove depth.
• There is a stabilizer for large diameter pipes, the pipe does not slip.
• Compact and stable machine design.

Execution:

• Electro-hydraulic rolling grooving machine ROGROOVER 2-12".
• The kit includes a tape measure for measuring diameters.

  Dimensions (LxWxH), mm	920x460x960
  Weight, kg	129
  Power, kW	1.1
  Voltage, V	230
  Wall thickness, mm	3-10
  Working range of diameters, mm (inch)	2-12
  Working speed, rpm	23
