SUPER TIG 302 AC/DC 400V 25.0Kg AQUA-TROLLEY SUPER TIG 302 816246

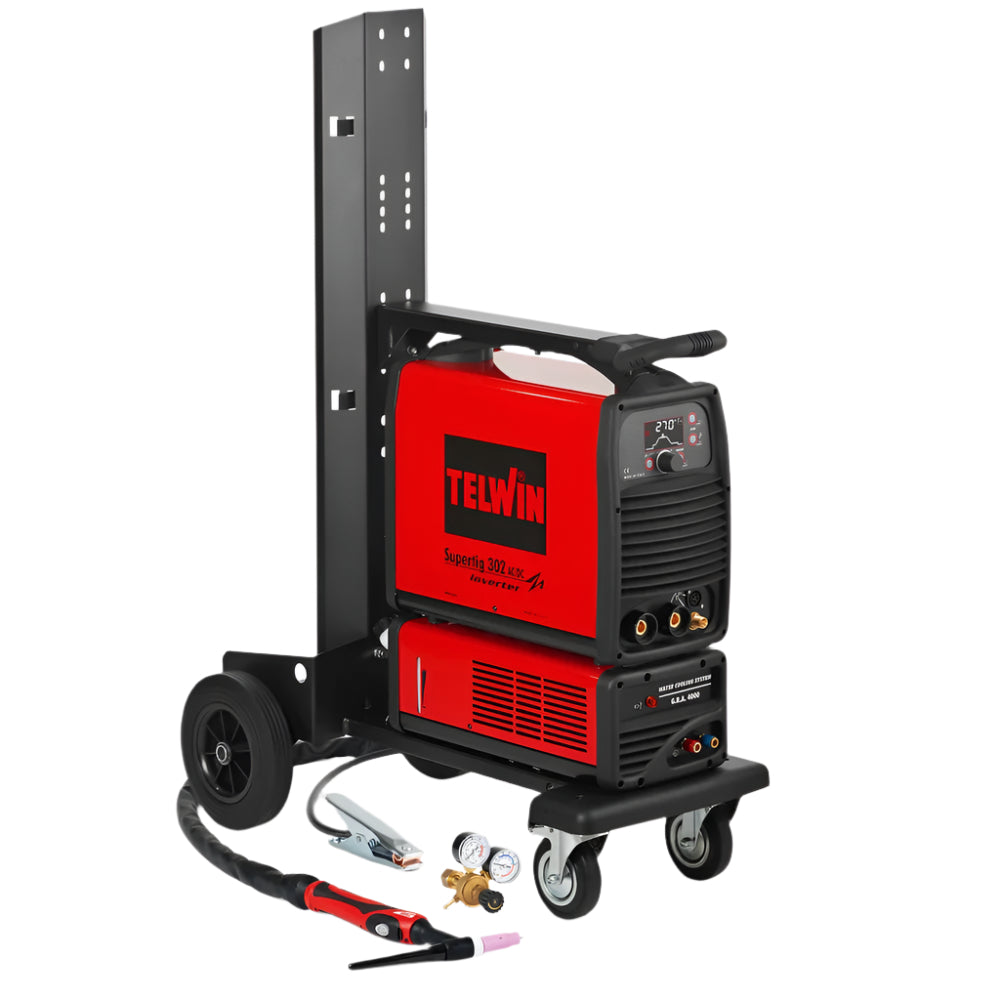

SUPERTIG 302 AC/DC AQUA + ACC. + TROLLEY

• TIG AC/DC (HF or LIFT), TIG PULSE (PULSE and EASY PULSE) and MMA inverter welding machine, 270A. With TIG welding accessories, trolley and water cooling system.
• With LCD display for interaction and simplified adjustment of the welding parameters.
• PULSE and EASY PULSE operation. THINSPOT advanced utility for easy, rapid and accurate TIG spot welding of thin sheet metal. MIX AC-DC to heat the workpiece to weld and prepare it for AC welding.
• 10 customisable welding programs.
• MMA welding: continuous or pulse mode (MMA Pulse).
• Resistant to dirt and dust thanks to the ventilation system (dedicated tunnel) that preserves the electronic components, guaranteeing longer duration over time. Solid and strong structure.
• Setup for remote controls.
• TIG AC/DC (HF or LIFT), TIG PULSE (PULSE and EASY PULSE) and MMA inverter welding machine.
  Use with different types of materials such as steel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys.
  Designed to ensure excellent results on every thickness even the thinnest, the PULSE mode (also in the EASY PULSE version) reduces material deformation ensuring high arc stability.
  Presence of advanced features: MIX AC-DC for preparation of AC welding of workpieces with considerable weights; THINSPOT for spot welding of very thin sheet metal.
  The LCD screen facilitates interaction with the product and simplifies adjustment of multiple parameters of the TIG welding curve depending on processing needs.
  You can save and retrieve customised programs.
  Electrode welding both in continuous and pulsed mode (MMA Pulse) which ensures excellent results with basic electrodes and in position welding.
  Designed for reliability over time, it features a dedicated air tunnel cooling system that protects against dust and dirt.
  Features:
  TIG
  • operation in pulse and EASY pulse mode; in 2/ 4 times, Bi Level;
  • 10 customisable welding programs;
  • adjustment of multiple welding curve parameters: pre-heating electrode, initial/final current, spot time, pre/post gas, start/end current ramp, DC/AC balance, square wave frequency;
  • advanced functions: THINSPOT for spot welding of very thin sheet metal; MIX AC-DC to heat the workpiece to weld and prepare it for AC welding;
  • optimised minimum current start-up (HF/LIFT);
  • set up for remote control and cooling unit;
  • compatibility with PRO torches;
  MMA
  • direct current and pulse (MMA PULSE) operation;
  • hot start, arc force settings;
  • anti-stick protection;
  • VRD device;
  Other features:
  • LCD screen for simplified interaction and immediate display and parameter setting;
  • reliability over time thanks to cooling system with dedicated air tunnel that protects against dust and dirt;
  • ensures the best performance even in the presence of undervoltages (up to -25%) and overvoltages (+ 15%).
  • compact and robust design for easier transport and less space needed;
  • thermostatic, overvoltage, undervoltage, internal dirt, overcurrent, phase failure, liquid of cooling unit protections.
  Complete with TIG welding accessories, trolley Mondial and GRA 4000 water cooling unit.

• CODE	816246
  THREE PHASE MAINS VOLTAGE	400 V
  MAINS FREQUENCY	50 / 60 Hz
  CURRENT CONTROL RANGE DC	5 - 270 A
  CURRENT CONTROL RANGE AC	5 - 270 A
  MAX CURRENT DC EN60974-1	250 @ 30 % A
  MAX CURRENT AC EN60974-1	250 @ 30 % A
  CURRENT 60% DC	170 A
  CURRENT 60% AC	170 A
  CURRENT 100% DC	130 A
  CURRENT 100% AC	130 A
  MAX ABSORBED CURRENT	16 A
