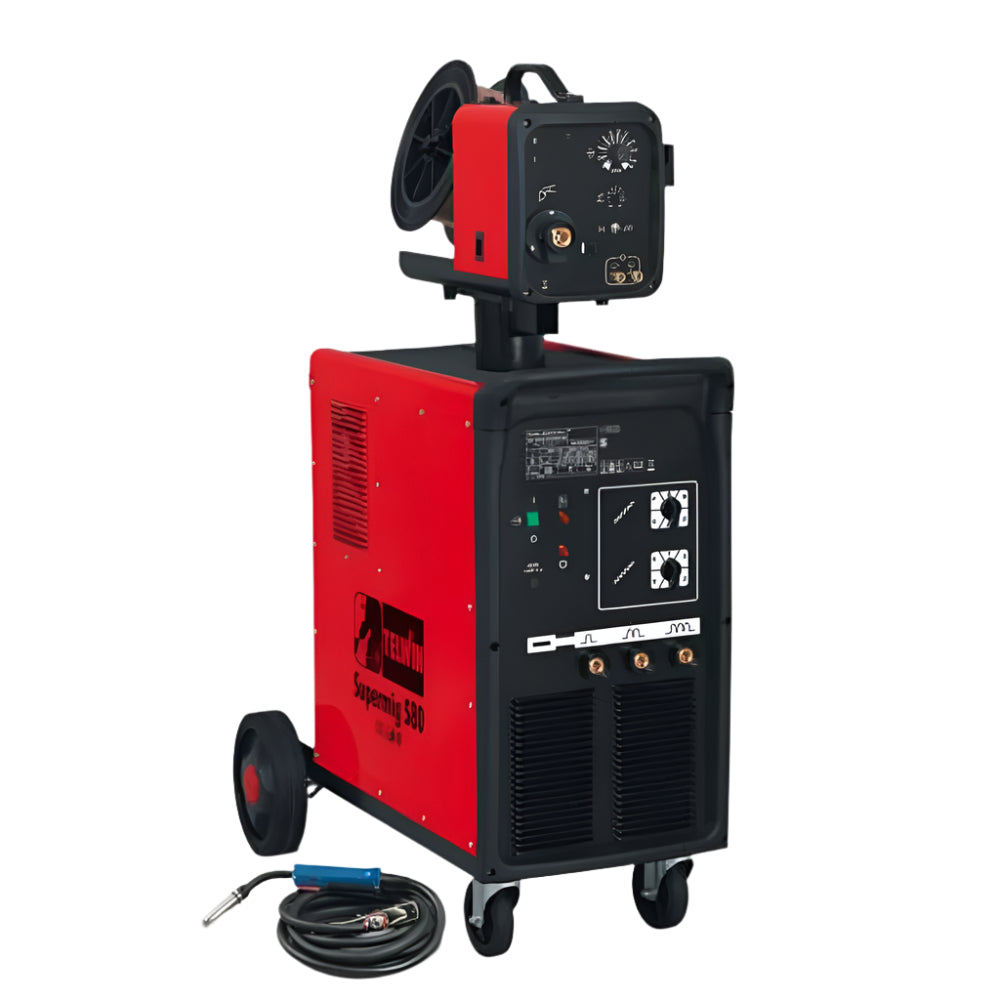

Telwin Spare Parts for Flux Welding Supermig 580

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for welding machine Flux and Mig-mag Supermig 580.

• Product categoryWelding inverters
• ProducerTELWIN
• TypeSemi-automatic welding machine
• Voltage, V1 phase (220 V) / 3 phases (380 V)
• Power, W27000 W
• Max. welding current, A550 A
• Welding methodsMIG
• MAG
• Country of assemblyItaly
• Brand countryItaly
• • Mains voltage 230/400 - 3 ph V50 / 60Hz
  • Adjustment range 60 - 550 A
  • Maximum 550 - 35% A EN60974-1
  • Current at 60% 420 A EN60974-1
  • Max. open circuit voltage AC 56 V
  • Power consumption at 60% - max. 17 - 27 kW
  • Power factor 0.9 cosphi
  • Position adjustment 36
  • Diameter of steel welding wire 0.8 - 2.4 mm
  • Diameter of inox welding wire 0.8 - 2.4 mm
  • Diameter of aluminum welding wire 0.8 - 1.6 mm
  • The diameter of the welding wire is 1 - 2.4 mm.
  • Soldering wire diameter 0.8 - 1.2 mm
  • Degree of protection IP22
  • Dimensions 102 - 57 - 138 cm
  • Weight 190 kg

  Welding machine with MIG-MAG / FLUX / BRADING wire with removable wire feeder. Suitable for use in industrial environments.

  Flexibility of application with different types of materials such as: steel, stainless steel, high-strength steel and aluminum.
