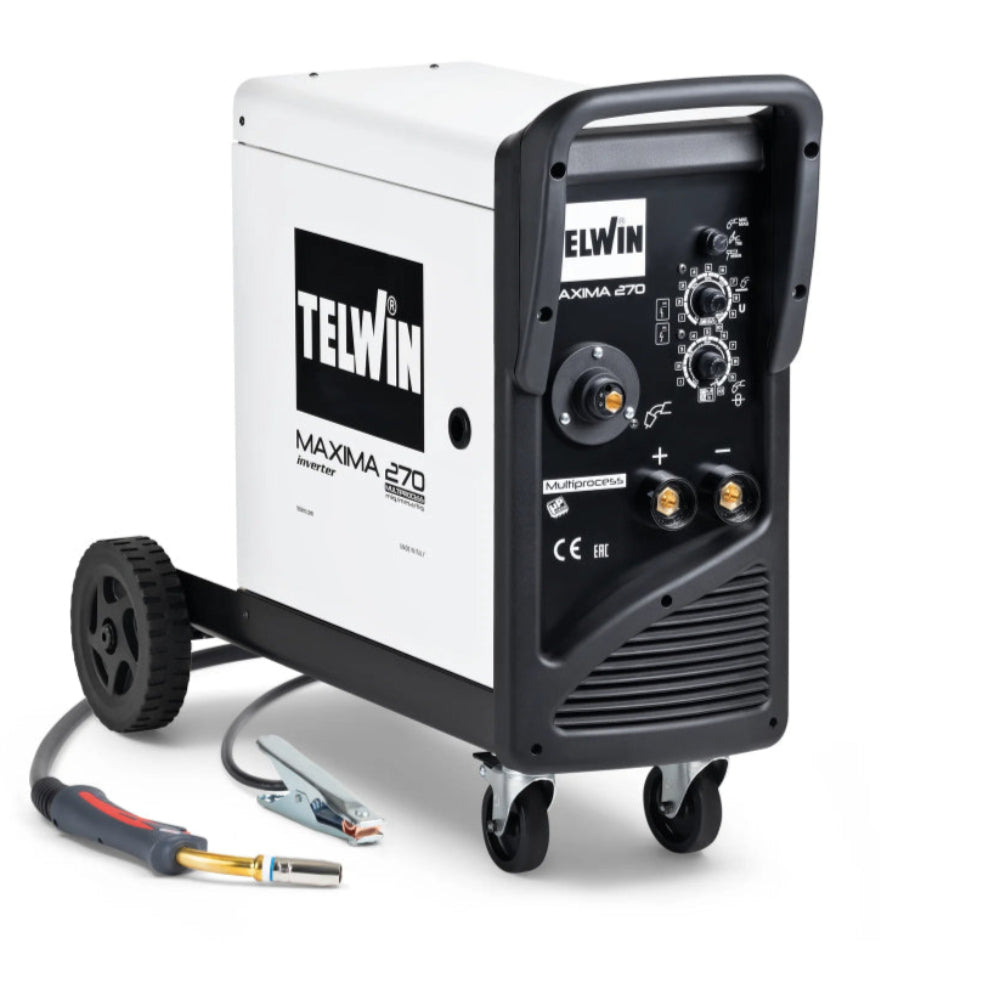

MAXIMA 270 816126 ماكينة لحام ميج / ماج / تيج / كهرباء 270 امبير 1فاز

MAXIMA 270

• Multiprocess inverter welding machine (MIG-MAG/BRAZING/MMA/TIG DC-LIFT), 250A.
• SYNERGIC adjustment of the parameters: intuitive panel with 3 settings (process, shape of seam and thickness
• Set up for use with max 15kg Ø 300 mm reels.
• Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%).
• MMA welding: rutile electrodes up to 4 mm.
• Contained consumption thanks to inverter technology.
• Microprocessor controlled MIG-MAG/BRAZING/MMA/TIG DC- LIFT inverter wire welding machine.
  It allows great versatility in the use of various types of materials (steel, stainless steel, aluminium) and in all possible applications, from maintenance to installation works.
  The easy and immediate adjustment of the welding parameters makes the products easy to use and grants excellent results, always, also for the less experienced operator.
  Light and compact, it can be carried easily in any intervention place.
  Features:
  • Arc-force adjustment in MMA;
  • Euro torch connection;
  • Thermostatic, overvoltage, undervoltage, motorgenerator (+/- 15%) protections.
  Complete with torch, work clamp and cable.

  Code	816126
  Power Supply	230V
  Welding Type	MIG - MAG - BRAZING - MMA - TIG
  Regulation Field	20 ÷ 250 A
  Max. DC Current	200 @ 20 % A
  DC Current	130 A
  Maximum Open Circuit Voltage	60 V
  Maximum Current Draw	30 A
  Current Draw at 60%	20 A
  Maximum Power Absorbed	6.3 kW
  Power consumption at 60%	3.3 kW
  Yield	87%
  Power Factor	0.7
  Diameter of Electrodes Usable in DC	Ø 1.6 - 4 mm
  Degree of Protection	IP23
  Dimensions	82.5 x 36 x 67 cm
  Weight	23 kg
