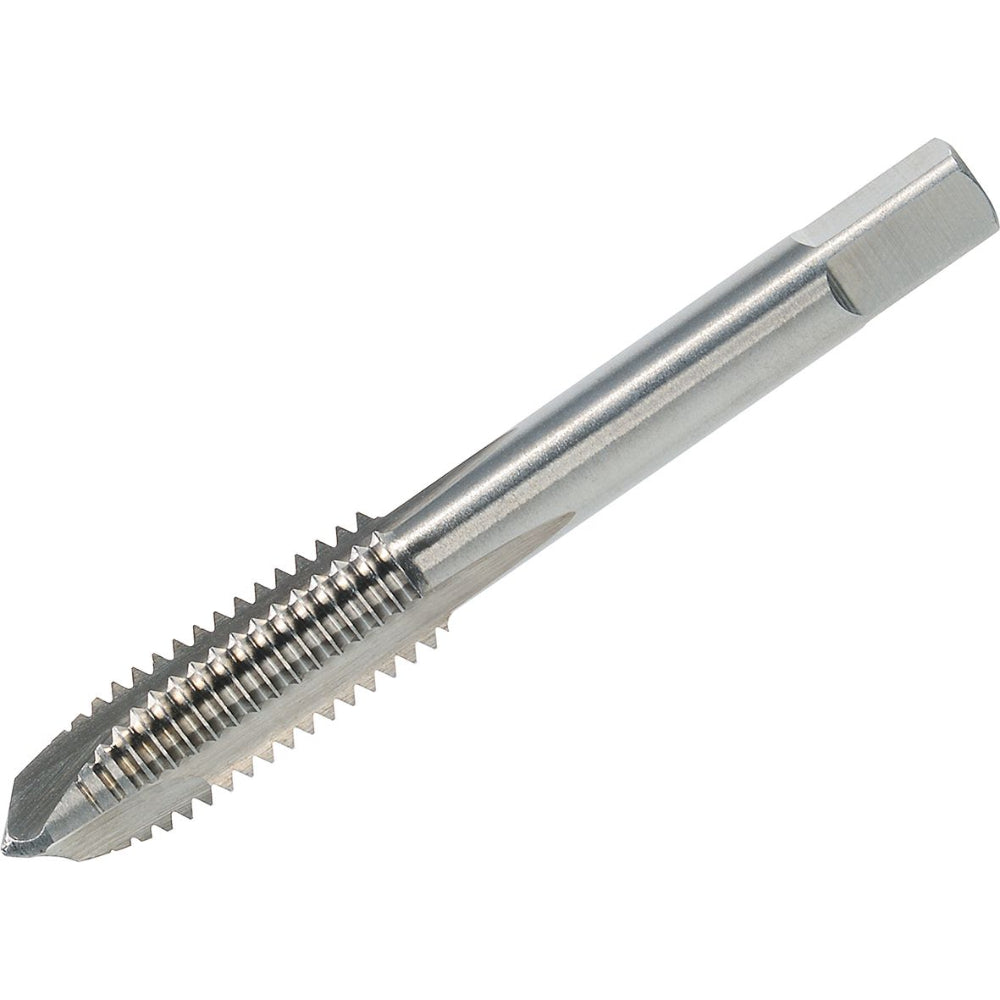

Short Machine Tap DIN 352 Form B HSSE - M 6 x 1.0

Application:

for general use

• non abrasive material up to 900 N/mm²
• unalloyed and low alloyed steel
• for thread cutting by hand and machine
• for through holes

  Type of thread	metric ISO-thread
  Standard	DIN 352
  Form	Form B
  Material	HSSE
  Tolerance	ISO2 (6H)
  Size	M 6 x 1.0
  Overall length (L1)	50 mm
  Thread length (L2)	19 mm
  Core hole diameter (D1)	5.0 mm
  Shank diameter (D2)	6.0 mm
  Drive connector	4.9 mm
  EAN	4022835615385
  Item number	61538
  Type of flute	straight fluted
  Application	for through holes
  Thread standard	DIN 13
