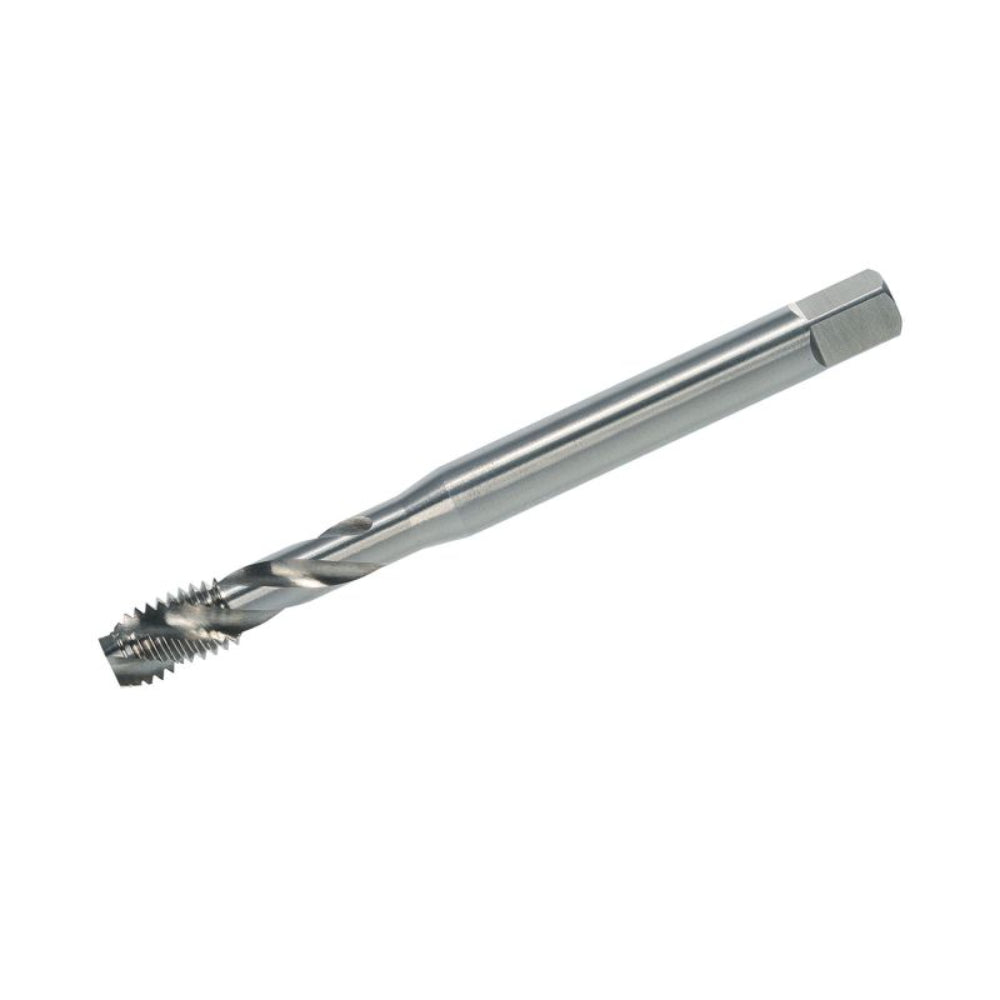

Machine Tap DIN 371 Form C 35° Spiral Flute HSSE - M 4 x 0.7

Advantages:

• safe production process and precise cutting of micro-threads M1 - M1.8
• for all-purpose
• best industrial quality
• immediately available frostock

Application:

for general use

• non abrasive material up to 900 N/mm²
• unalloyed and low alloyed steel
• Form C 35° RSP for blind holes

  Type of thread	metric ISO-thread
  Standard	DIN 371
  Form	Form C
  Material	HSSE
  Tolerance	ISO2 (6H)
  Size	M 4 x 0.7
  Overall length (L1)	63 mm
  Thread length (L2)	7 mm
  Core hole diameter (D1)	3.3 mm
  Shank diameter (D2)	4.5 mm
  Drive connector	3.4 mm
  EAN	4022835377306
  Item number	37730
  Type of flute	35° Spiral Flute
  Application	for blind holes
  Thread standard	DIN 13
