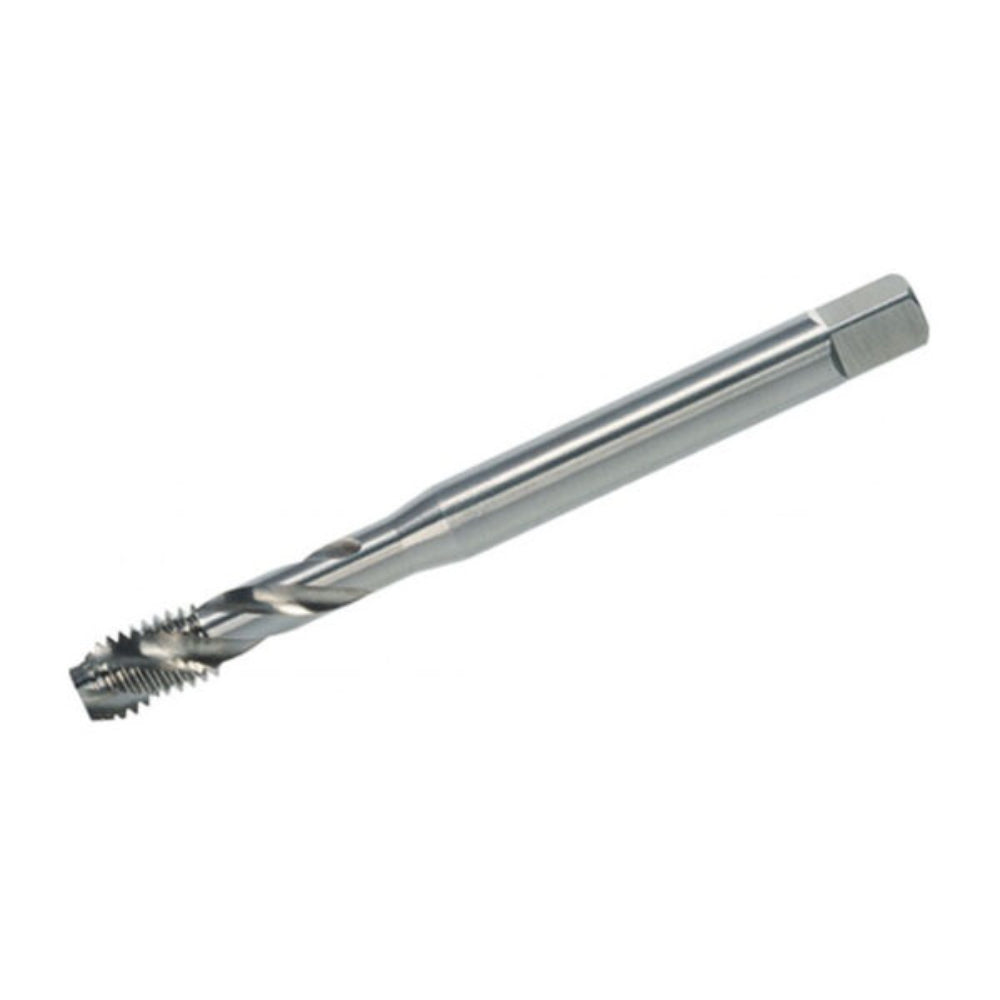

Machine Tap DIN 371 Form C 35° Spiral Flute HSSE - BSW 3/16 x 24

Application:

for general use

• non abrasive material up to 900 N/mm²
• unalloyed and low alloyed steel
• for blind holes

  Type of thread	Whitworth-Thread
  Standard	DIN 371
  Form	Form C
  Material	HSSE
  Tolerance	medium
  Size	BSW 3/16 x 24
  Overall length (L1)	70 mm
  Thread length (L2)	10 mm
  Core hole diameter (D1)	3.6 mm
  Shank diameter (D2)	6.0 mm
  Drive connector	4.9 mm
  EAN	4022835707103
  Item number	70710
  Type of flute	35° Spiral Flute
  Application	for blind holes
  Thread standard	BS 84
