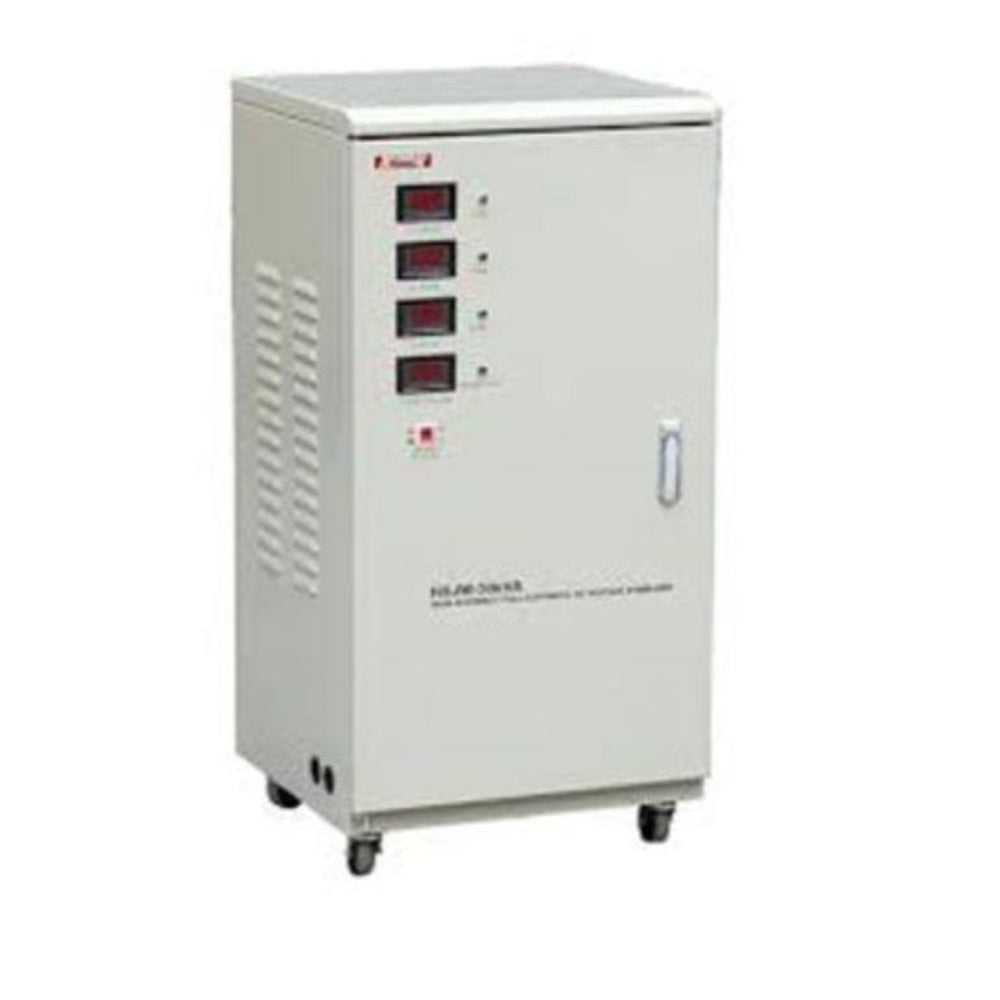

Range of product: HSJW
Technology type: Servo motor
Rated power in VA: 30 kVA
Outlet standard: European
Output voltage: 380 V
Input voltage limits: 260...430 V

Rated power in VA 30 kVA

Minimum insulating resistance 5 MOhm

Maximum [In] rated current 45.6 A

Efficiency 92 %

Input voltage limits 260...430 V

Optional feature: Bypass

Protection type:

Overvoltage for output

Undervoltage protection optional for input

Undervoltage protection optional for output

Overload protection optional

Phase failure optional

Temperature rise protection optional

Time delay optional

Inrush surge protection optional

Signalling function LED

Output voltage 380 V AC +/- 4 %

Network frequency 50/60 Hz

[Uimp] rated impulse withstand voltage 1.5 kV per minute

Mounting support Floor-standing

Ambient air temperature for operation -5…40 °C

Relative humidity 0…90 %

Operating altitude 0...2000 m

Standards

EN 61000-6-2

EN 61000-6-4

EN 61558-1

Product certifications CE
