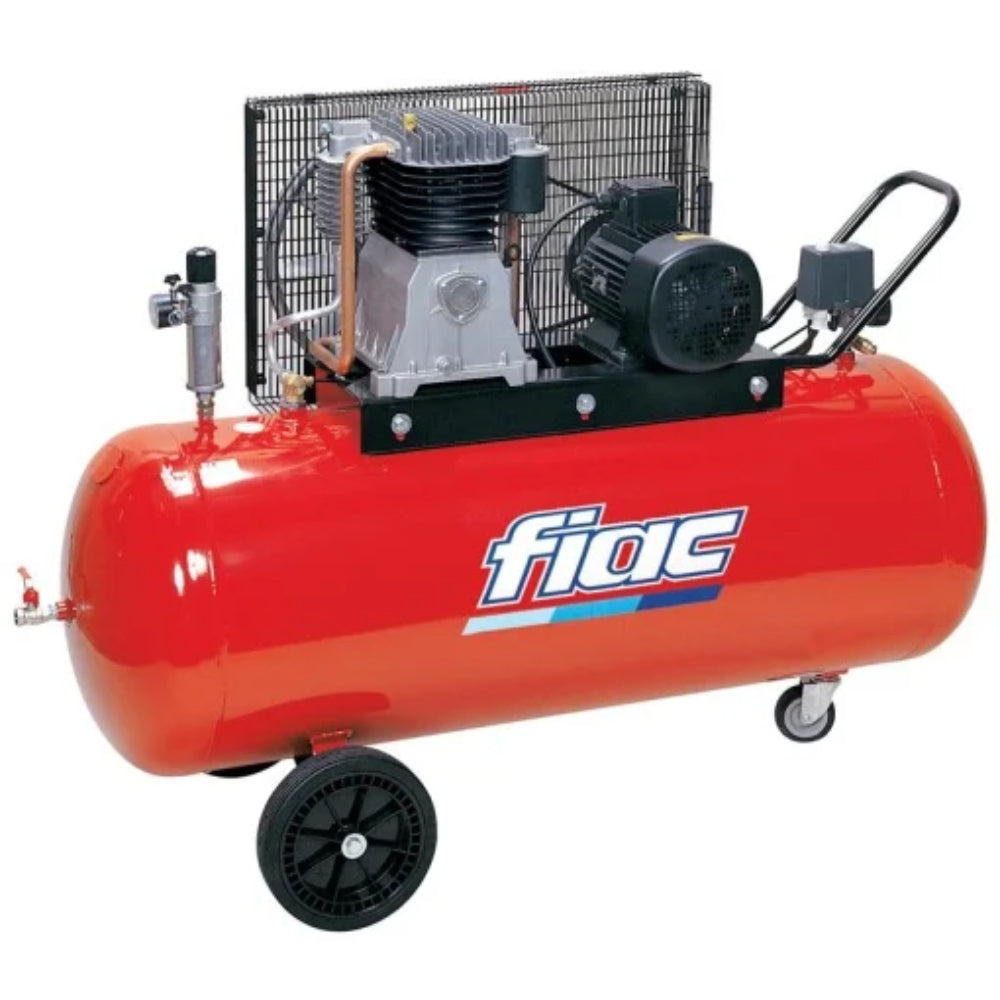

Piston compressor, professional, FIAC AB300/808TC
Description
AB300/808tc is a professional two-piston compressor driven by a belt from a three-phase electric motor. It has improved efficiency, a robust construction and is equipped with a pressure switch with manual resettable thermal protection, pressure gauge, safety valve, bleed valve.
The pump is equipped with an additional cooler with aluminum fins.
Compressor equipped with wheels and handle.
Equipped with a ball valve for compressed air.
Made in Italy
SPECIFICATIONS
Supply voltage: 380 V
Cylinder volume: 270 l
Maximum pressure: 10 bar
Transmission: belt Power
(kW): 5.5 kW
Power (HP): 7.5 HP
Intake air flow: 800 l/min
Discharge air flow: 610 l/min
Lubrication: With oil
Number of cylinders: 2
Compression stages: 2
Speed: 1350 rpm
Construction: Horizontal
Compressor type: Stationary (fixed)
Noise level (LpA, at 4m): 76 dB(A)
Dimensions (L x W x H): 1600 x 560 x 1040 mm
Weight: 148 kg
Details
Product code
AB300/808TC_S
Product Type
Piston compressor
Power supply type
380-400 V network
Maximum pressure (bar)
10
Discharge flow (l/min)
610
Cylinder capacity (liters)
270
